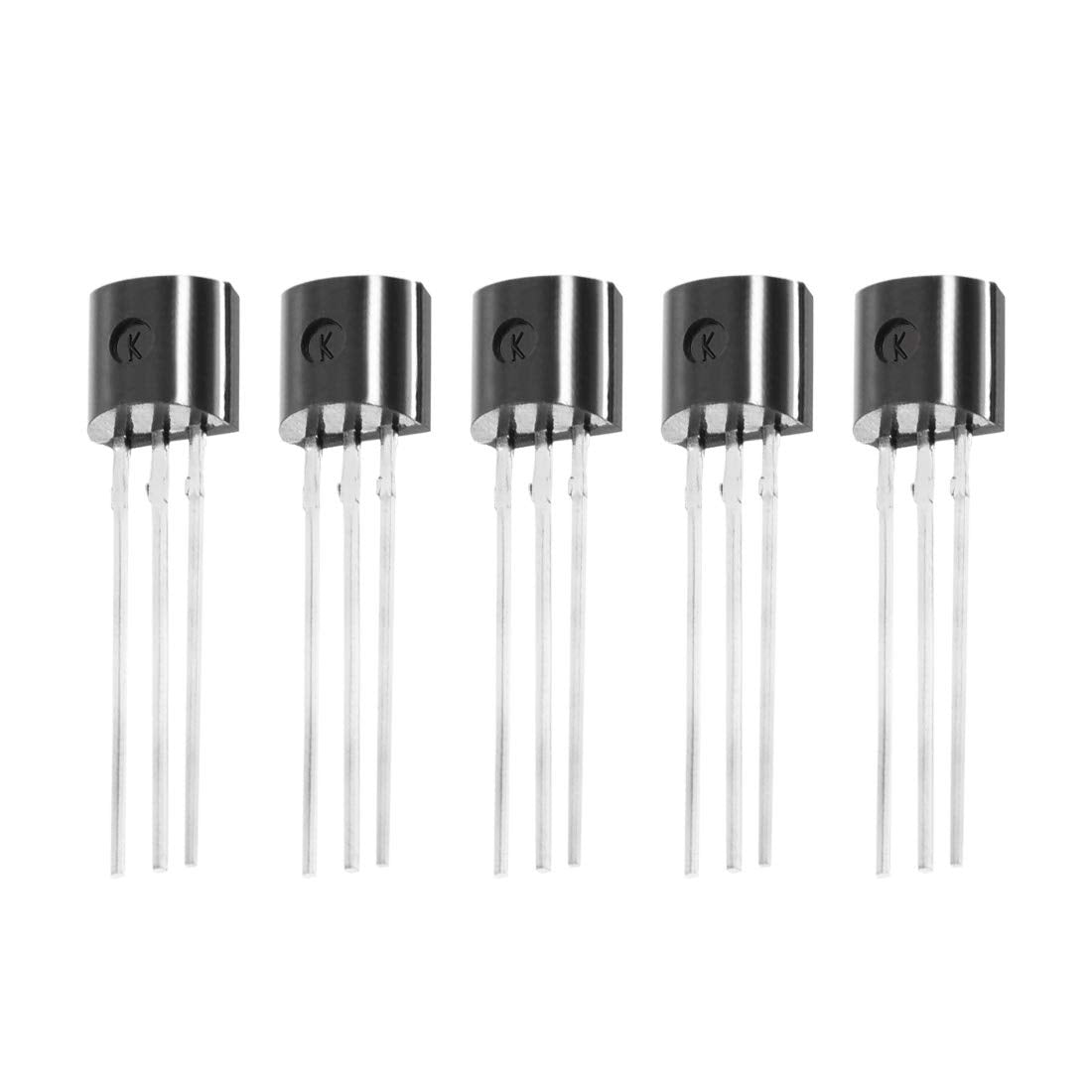

100 Pieces of SS8550 PNP Transistor TO-92-25V -1.5A 1W

Key Features

• Type PNP, Model SS8550, Package type TO-92, (VCBO -40V, VCEO -25V, IC -1.5A, PC 1W)
• Applications This SS8550 PNP transistor in TO-92 package is perfect for switching applications. It can also be used as amplifier, for motor speed control and for other general purpose applications.
• Features The SS8550 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, base, and collector leads.
• SS8550 Pinout Configuration 1, Emitter Current Drains out through emitter, normally connected to ground; 2, Base Controls the biasing of transistor, Used to turn ON or OFF the transistor; 3, Collector Current flows in through collector, normally connected to load.
• Package Content 100 x PNP Transistors.

Product Description

ApplicationThis SS8550 PNP transistor in TO-92 package is perfect for switching applications. It can also be used as amplifier, for motor speed control and for other general purpose applications. Feature:Pin configuration (Pinout) of the SS8550The SS8550 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, base, and collector leads. Parameter:Type : PNPModel : SS8550Package type : TO-92VCBO: -40VVCEO: -25VIC: -1.5APC: 1WBody Size: 4.5mm*3mm*4.5mm/0.17" x 0.11" x 0.17"(L*W*H)Pin Diameter: 0.4mm/0.01Pin Length: 14mm/0.55" SS8550 Pinout Configuration:1, Emitter: Current Drains out through emitter, normally connected to ground;2, Base: Controls the biasing of transistor, Used to turn ON or OFF the transistor;3, Collector: Current flows in through collector, normally connected to load

Package Content

100 x PNP Transistors
