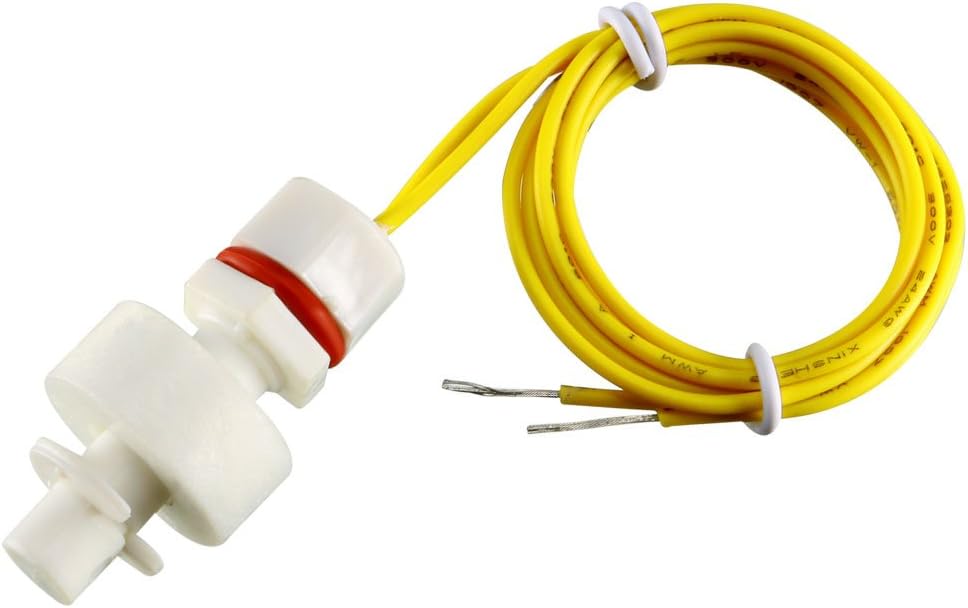

10 x Mini Water Liquid Level Sensor Vertical Float Switch 36mm ZP2508

Key Features

• Product Name Floating Switch;Model No. ZP2508;Max Contact Rating 10W
• Max Switching Voltage 100V DC;Max Switching Current 0.5A;Max Breakdown Voltage 220V DC;Max Load Current 1A
• Max Contact Resistance 100mohm;Temperature Rating -10 / +85 C;Float Ball Material P.P;Float Body Material P.P
• Thread Dia(Approx) 7.5mm / 0.3";Switch Body Size 19 x 36mm / 0.75" x 1.4"(Max D*H);Cable Length 36cm / 14.2"
• Color White;Net Weight 64g;Package Content 10 x Floating Switch

Product Description

Product Name : Floating Switch;Model No. : ZP2508;Max Contact Rating: 10W Max Switching Voltage : 100V DC;Max Switching Current : 0.5A;Max Breakdown Voltage : 220V DC;Max Load Current : 1A Max Contact Resistance : 100mohm;Temperature Rating : -10 / +85 C;Float Ball Material : P.P;Float Body Material : P.P Thread Dia(Approx) : 7.5mm / 0.3";Switch Body Size : 19 x 36mm / 0.75" x 1.4"(Max D*H);Cable Length : 36cm / 14.2" Color : White;Net Weight : 64g;Package Content : 10 x Floating Switch › See more product details
