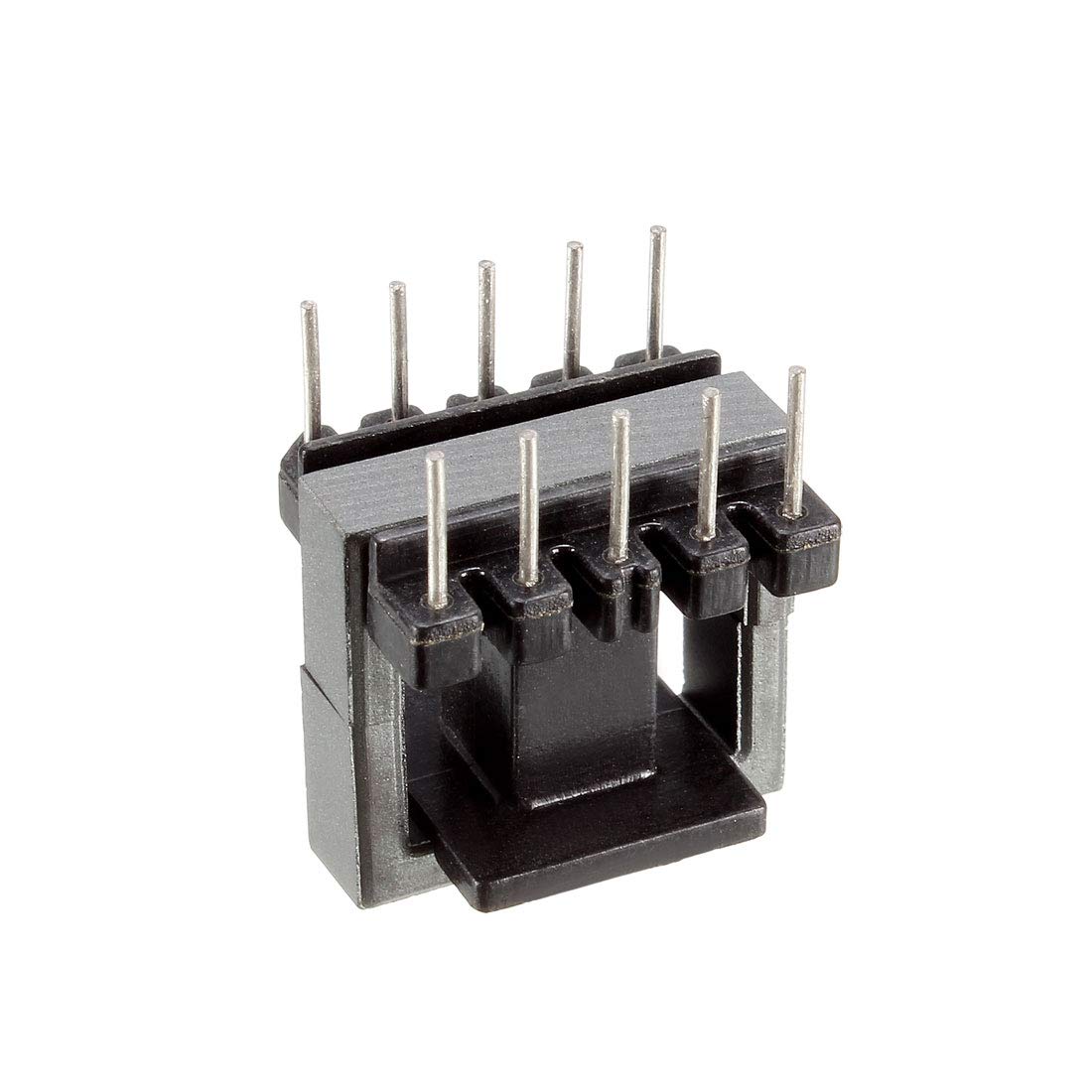

10 Sets EE16 5 with 5pin Transformer Bobbin PC40 Ferrite Core Vertical 20 Ferrite Halves and 10 Bobbin

Key Features

• Product Name EE16 Vertical Ferrite Core Transformer Bobbin 5+5 Pin
• Type EE16; Pin spacing 3mm/0.12''; Row spacing 10.5mm/0.4"; Ferrite core Size 17 x 4.5 x 7.5mm/0.6" x 0.2" x 0.3"(L*W*T); Bobbin size 16 x 13 x 18mm/0.6" x 0.5" x 0.7"(L*W*H).
• Applications switching power supply transformers, choke coils, high frequency transformers, filters.
• Product Range Transformers, filter inductors, coils, bobbins, magnetic cores.
• Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!

Product Description

Product description Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more! Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.Type: EE16Pin spacing: 3mm/0.12''Row spacing: 10.5mm/0.4"Ferrite core Size: 17 x 4.5 x 7.5mm/0.6" x 0.2" x 0.3"(L*W*T)Bobbin size: 16 x 13.5 x 18mm/0.6" x 0.5" x 0.7"(L*W*H)Winding frame size: 8.5 x 6.5 x 5.5mm/0.3" x 0.2" x 0.2"(L*W*H)

Package content

10 SET = 20 ferrite halves + 10 bobbin
