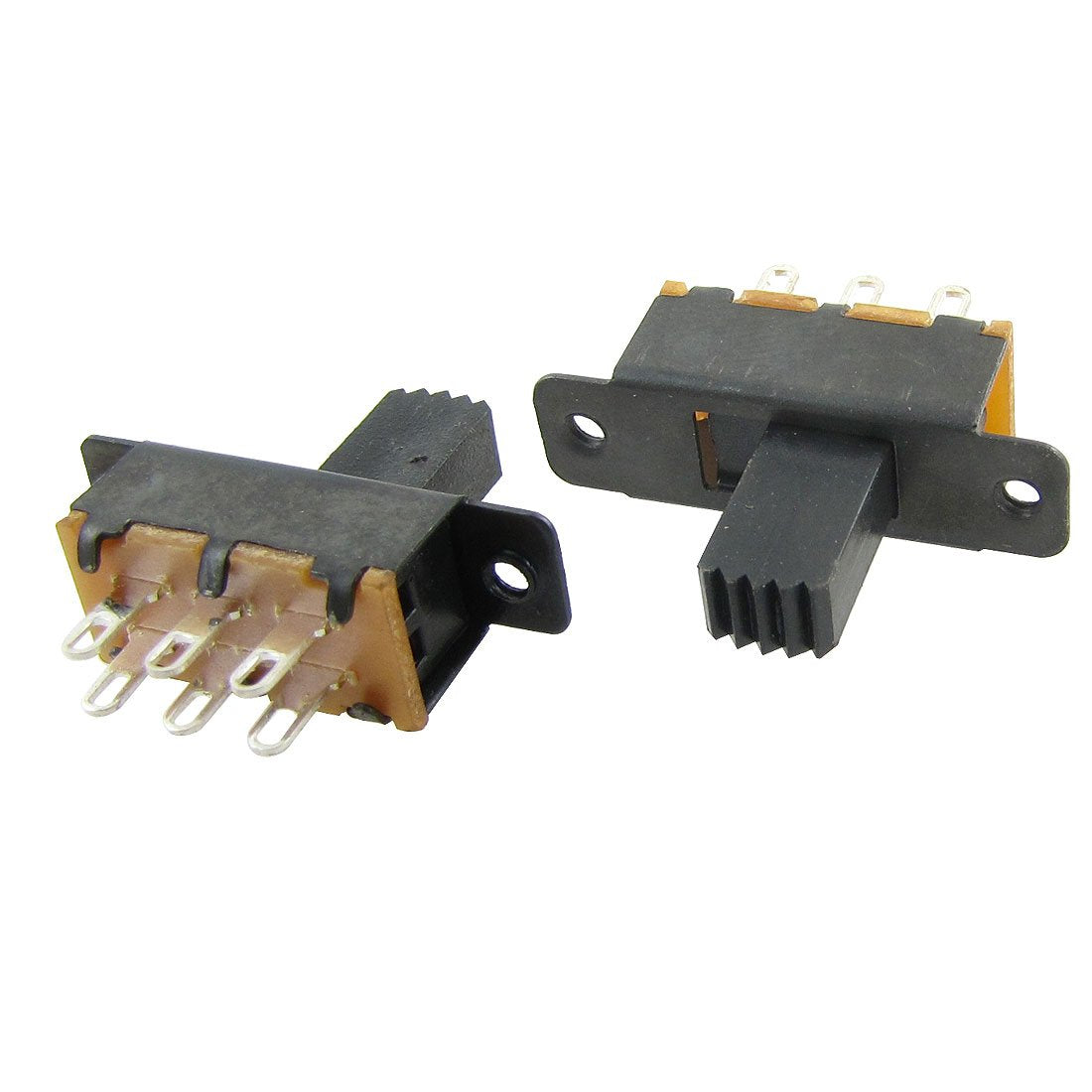

10 Pcs SS22F25-G7 2 Position DPDT 2P2T Panel Mount Mini Slide Switch Solder Lug

Key Features

• Product Name Slide Switch;Model SS22F25;Action Type DPDT;Positions 2 Positions
• Terminal Quantity 6 Pcs;Working Power 0.5A 50V DC;Contact Resistance 30mohm Max
• Insulation Resistance 100mohm Min at 500V DC;Withstand Voltage AC 500V for 1 min;Terminal Length 4mm/ 0.16"
• Switch Total Size 23 x 7.5 x 19mm/ 0.9" x 0.29" x 0.75"(L*W*H);Knob Size 5 x 3.5 x 7mm / 0.2" x 0.14" x 0.28"(L * W * H);Material(External) Plastic, Metal
• Main Color Silver Tone, Black;Weight 20g;Package Content 10 x Slide Switch

Product Description

Features

Easy Structure, Mini Body, 6 Terminal, Vertical Handle,2 Pole 2 Position, Sliding Knob Actuator.Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights. etc.Also a great component for DIY.
