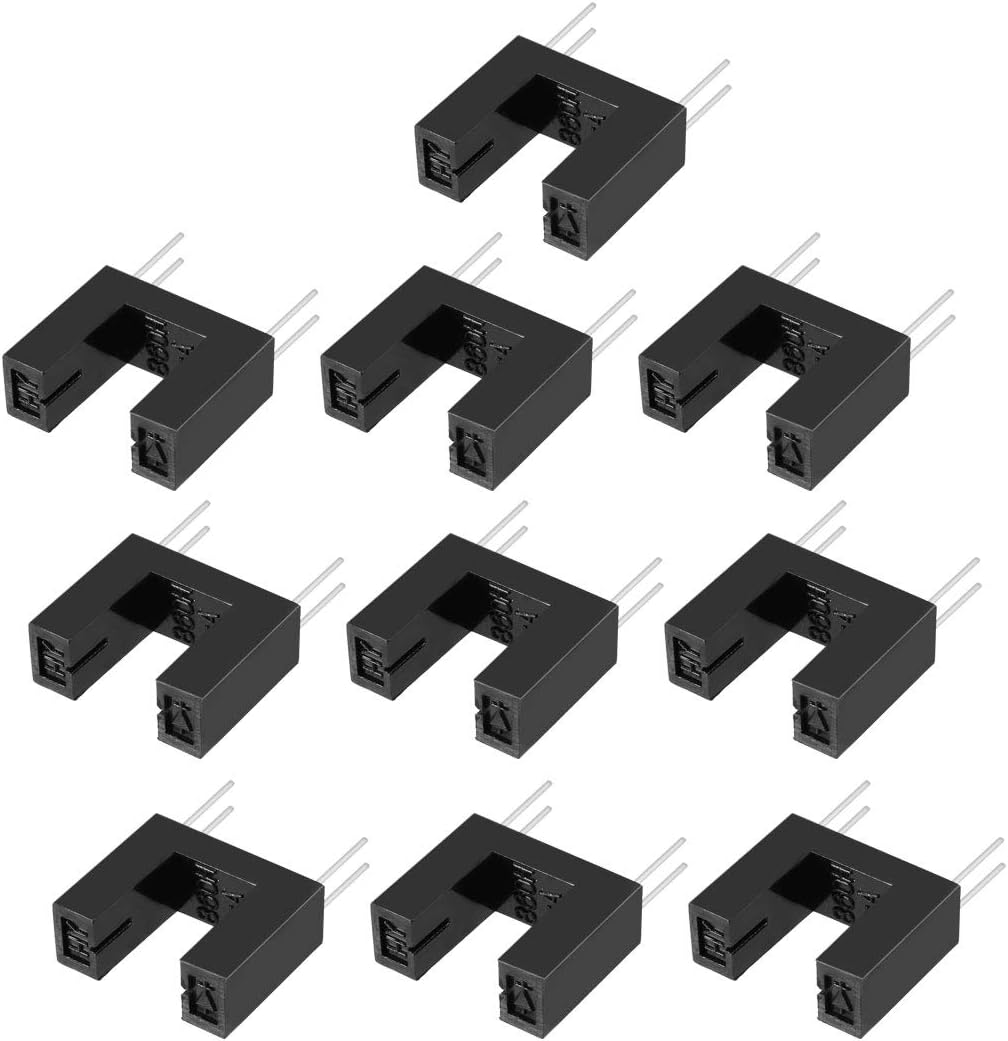

10 Pcs 5/16" Slot PCB Photo Interrupter Slotted Optical Sensor Switch HY860H-A
Key Features
- Output TypeHY860H-A
- Detection Distance：8mm
- Package Content10 x Optical Sensor Switch
- Total Size22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)
- Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
Product Description
Specification:Product Name: Optical Sensor SwitchModel: HY860H-AOutput Type: Photo TransistorPeak Emission Wavelength: 940nmIR Diode Forward Current: 50mAIR Diode Reverse Voltage: 5VTransistor Power Dissipation: 75mWTransistor Collector Current: 20mAPhoto Transistor Collector-emitter Voltage: 30VPhoto Transistor Emitter-collector Voltage: 5VDiode Power Dissipation: 100mWOperating Temperature Range: -55~100 Celsius DegreeNumber of Pins: 4Slot Width: 7.85mm/5/16"Slot Depth: 10mm/0.39"Pin Length: 8.81mm/0.35"Total Size: 22 x 16 x 6mm/0.9" x 0.63" x 0.2"(L*W*H)Detection distance is not adjustableDetection object ：opaque objectsDetection Distance：8mmMaterial: Plastic, MetalColor: Black
Package Content
10pcs x Optical Sensor Switch
Description
Consisted of an infrared emitter and a photo transistor, is located face-to-face on the optical axes in a leaded package.During operation, output photo transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
Specifications
| Item Weight | 0.01 Ounces |
| Product Dimensions | 5.51 x 3.94 x 0.39 inches |
