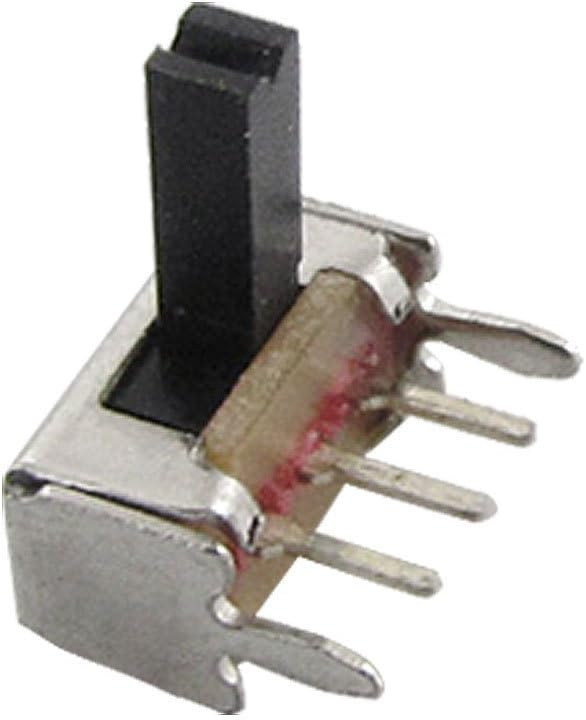

10 Pcs 3 Terminal 2 Position 1P2T SPDT Panel PCB Horizontal Slide Switch SK12D01-VG6

Key Features

• Product Name Horizontal Slide Switch;Model No. SK12D01-VG6;Position 2;Terminal Design Single Row 3 Terminal
• Contact Type 1P2T;Terminal Width 0.5mm/ 1/50";Terminal Pitch 2mm;Rating DC 50V, 0.5A
• Contacts Resistance 30M Ohm;Insulation Resistance 100M Ohm;Minimum Load DC 500V;Dielectric Strengths AC 500V / 1 minute
• Life Test 10000 cycles/ minute;Knob Size 2 x 2 x 6mm / 0.08" x 0.08" x 0.24"(L*W*H);Main Body Size(not include Terminal & knob) 8.7 x 4.4 x 4mm/ 0.34" x 0.17" x 0.16" (L*W*H);Overall Size 8.7 x 10.4 x 7.5mm/ 0.34" x 0.41" x 0.3" (L*W*H)
• Material Plastic & Metal;Color As picture shown;Weight 6g;Package 10 x Horizontal Slide Switch

Product Description

Specification:

Description

Slide Switch is for changing circuit by sliding the mini handle of the switch to control the circuit to be ON or OFF.The Slide Switch is widely used in the electric toy, sound equipments, fax, test instrument equiopments, or other low voltage circuit electronic equipments.This Slide Switch is with terminals design for easily welding onto the circuit.The slide knob is 6mm in height

Specifications
