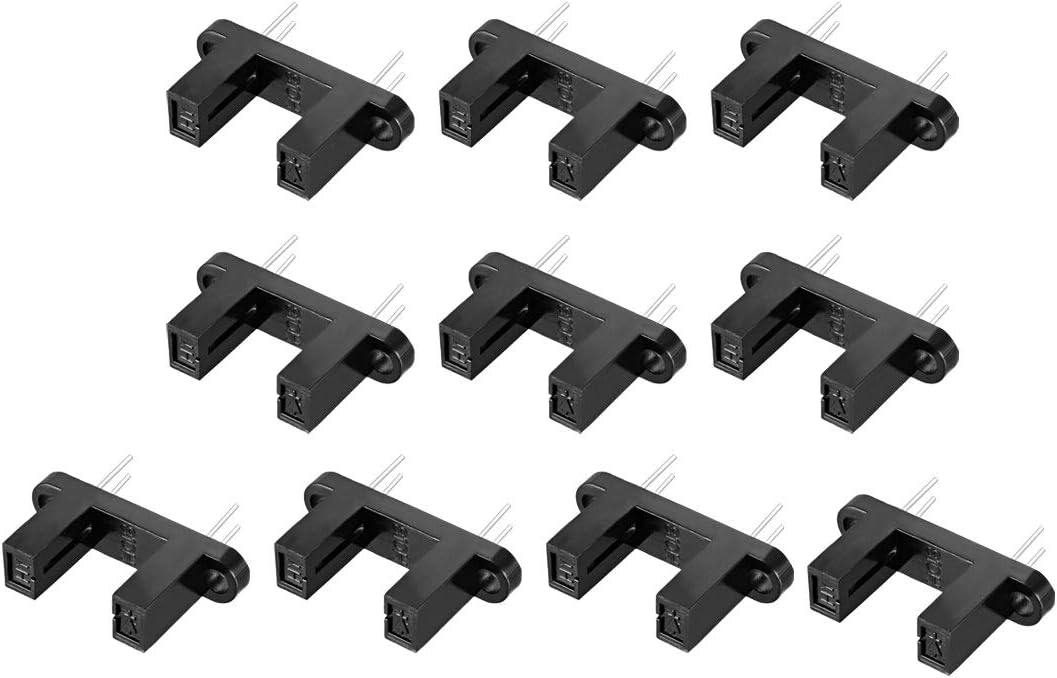

10 Pcs 25/64" Slot PCB Photo Interrupter Slotted Optical Sensor Switch HY810H

Key Features

• Output TypeHY810H
• Detection Distance：10mm
• Package Content10pcs x Optical Sensor Switch
• Pin Length 10.45mm/0.41"; Total Size26.5 x 6.1 x 22mm/1.04" x 0.24" x 0.87"(L*W*H)
• Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc

Product Description

Specification:Product Name:Optical Sensor SwitchModel: HY810HOutput Type:Photo TransistorPeak Emission Wavelength: 940nmIR Diode Forward Current: 50mAIR Diode Reverse Voltage: 5VTransistor Power Dissipation: 75mWTransistor Collector Current: 20mAPhoto Transistor Collector-emitter Voltage: 30VPhoto Transistor Emitter-collector Voltage: 5VDiode Power Dissipation: 100mWOperating Temperature Range: -55~100 Celsius DegreeNumber of Pins: 4Slot Width: 9.9mm/25/64"Slot Depth: 8.95mm/0.35"Pin Length: 10.45mm/0.41"Total Size: 26.5 x 6.1 x 22mm/1.04" x 0.24" x 0.87"(L*W*H)Detection distance is not adjustableDetection object ：opaque objectsDetection Distance：10mmMaterial: Plastic, MetalColor: Black

Package Content

10pcs x Optical Sensor Switch

Description

Consisted of an infrared emitter and a photo transistor, is located face-to-face on the optical axes in a leaded package.During operation, output photo transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
