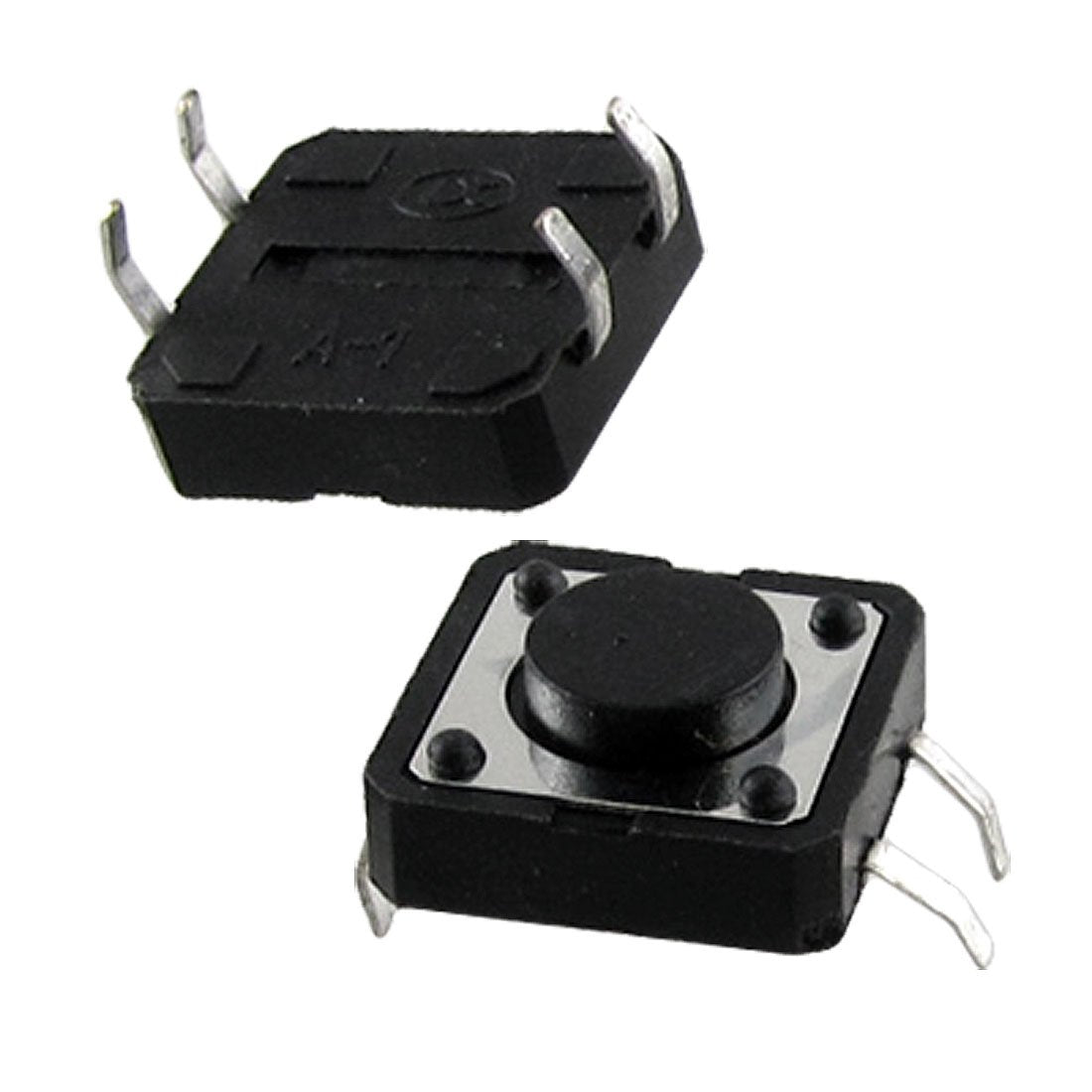

10 Pcs 12 x 12mm x 5mm Panel PCB Momentary Tactile Tact Push Button Switch DIP

Key Features

• Product Name Tact Switch;Contact Type Momentary Contact;Current Rating 50mA
• Voltage Rating DC 12V;Contact Resistance 100m Ohm;Dimension 12 x 12 x 5mm / 0.47" x 0.47" x 0.19" (L*W*H)
• Button Size 6 x 2mm / 0.24" x 0.08"(D*H);Pin Pitch 14 x 5mm / 0.55" x 0.19" (L*W);Pin Length 4mm / 0.16"
• Material Plastic, Metal, Electric Parts;Main Color Black, Silver Tone
• Net Weight 9g;Package Content 10 x Tact Switches

Product Description

Feature momentary contact, 4 pins, black square push button, through hole mounting. Used in the fields of electronic products, household appliances and more. High precision mechanism design offers acute operation and long service life.

Specifications
