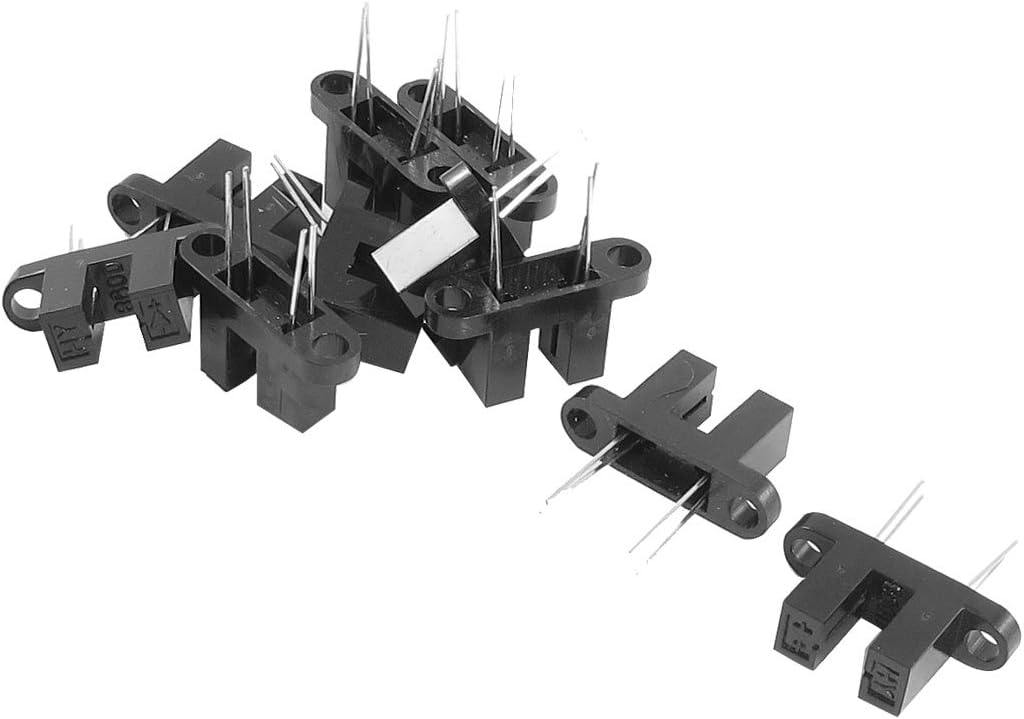

10 Pcs 11/64" Gap 4 Pin Photo Interrupter Blk w Bracket HY860D

Key Features

• Product Name Slotted Optical Switch;Model HY860D;Output Type Photo Transistor;Peak Emission Wavelength 940nm;IR Diode Forward Current 50mA
• IR Diode Reverse Voltage 5V;Transistor Power Dissipation 75mW;Transistor Collector Current 20mA;Photo Transistor Collector-emitter Voltage 30V;Photo Transistor Emitter-collector Voltage 5V
• Diode Power Dissipation 100mW;Operating Temperature Range -55~100 Celsius Degree;Number of Pins 4;Slot Width 4.3mm/11/64'';Slot Depth 9mm/9/25"
• Pin Length 11mm/0.4'';Pitch 9mm/0.35'', 2.5mm/0.1'';Hole Dia. 3.25mm/0.12'';Total Size 22 x 22 x 6mm/0.9'' x 0.9'' x 0.2''(L*W*H)
• Material Plastic, Metal;Color Black;Net Weight 8g;Package Content 10 x Slotted Optical Switch w Bracket

Product Description

Features a built-in bracket for easy mounting. Consisted of an infrared emitter and a phototransistor, is located face-to-face on the optical axes in a leaded package. During operation, output phototransistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor. Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
