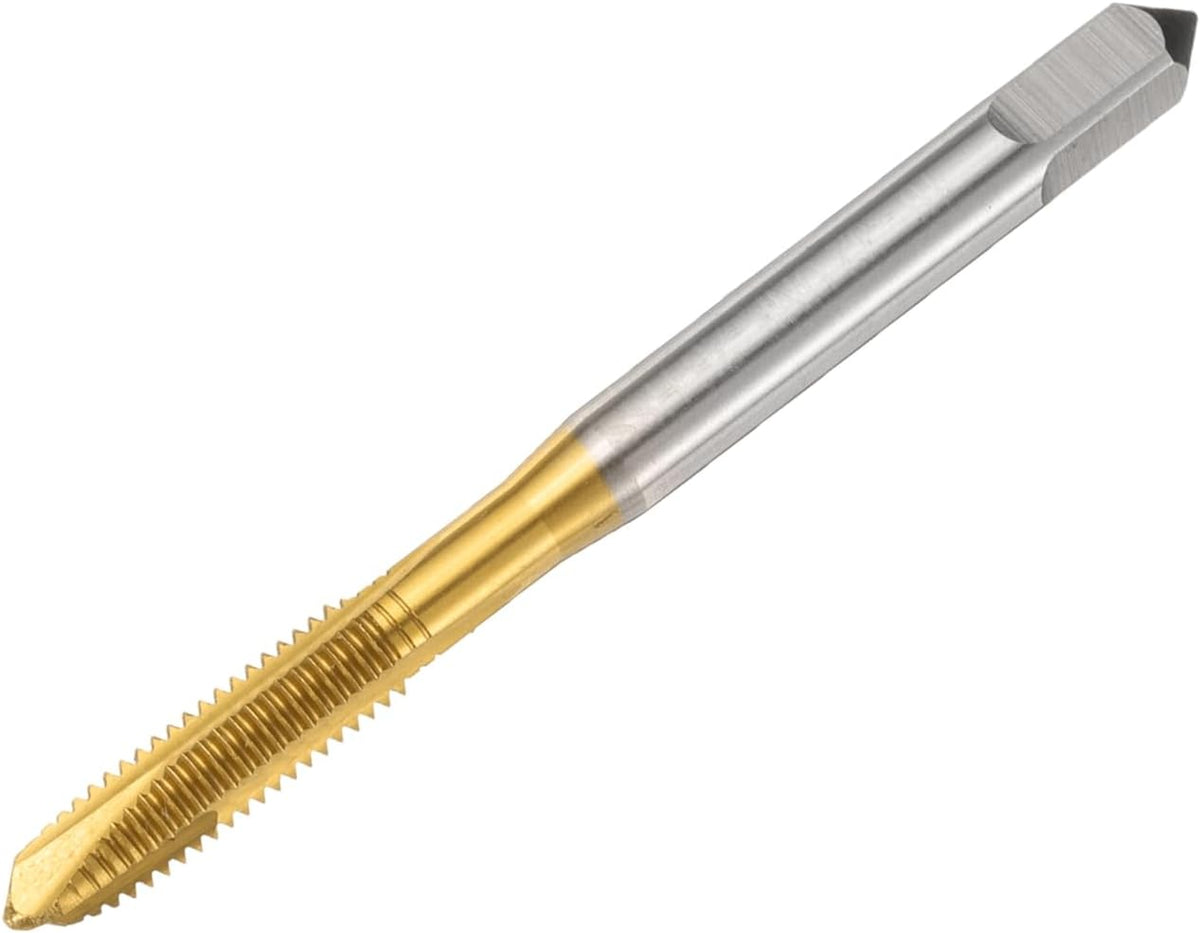

10-32 UNF B2 Spiral Point Thread Tap, Screw Tap Threading Tapping Tool, Titanium Coated 6542 High Speed Steel Machine Taps Tapping Bit

Key Features

• Spiral Point Tap Size Thread Size 10-32 UNF, Shank Side Width 2mm / 0.08 inch, Thread Length 21mm / 0.83 inch, Total Length 62mm / 2.4 inch, Accuracy B2
• 6542 (M2) High Speed Steel Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Titanium-plated threading taps can improve corrosion and oxidation resistance, extending service life, which is very suitable for a wide range of applications.
• Features Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping. The grooves on the tap facilitate the removal of chips and debris from the hole.
• Applications Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Use with tapping oil to improve processing accuracy and reduce the probability of breakage.
• Tips It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter.

Product Description

About this item Spiral Point Tap Size: Thread Size: 10-32 UNF, Shank Side Width: 2mm / 0.08 inch, Thread Length: 21mm / 0.83 inch, Total Length: 62mm / 2.4 inch, Accuracy: B2 6542 (M2) High Speed Steel: Made of high-speed steel, the tapping bit has high hardness, toughness and wear resistance, and can stably remove chips during cutting. Titanium-plated threading taps can improve corrosion and oxidation resistance, extending service life, which is very suitable for a wide range of applications.

Features

Thread tapping bit features spiral point, plug chamfer and right hand thread cutting. Straight groove taps can remove chips downward, with clear threads and sharp cutting edges, ensuring fast and accurate tapping. The grooves on the tap facilitate the removal of chips and debris from the hole. Applications: Screw tap can be used for drilling and tapping of stainless steel, aluminum, cast iron, alloy steel, ordinary steel, non-ferrous metals, hard plastics, etc. Suitable for drilling machines, tapping machines, CNC machine tools and milling machines. Use with tapping oil to improve processing accuracy and reduce the probability of breakage. Tips: It is recommended to use a machine tap with a tap chuck with overload protection function. The tapping angle should be 90 degrees vertical and stable, and the tapping depth should not exceed 1.5 times the tap diameter. ›
