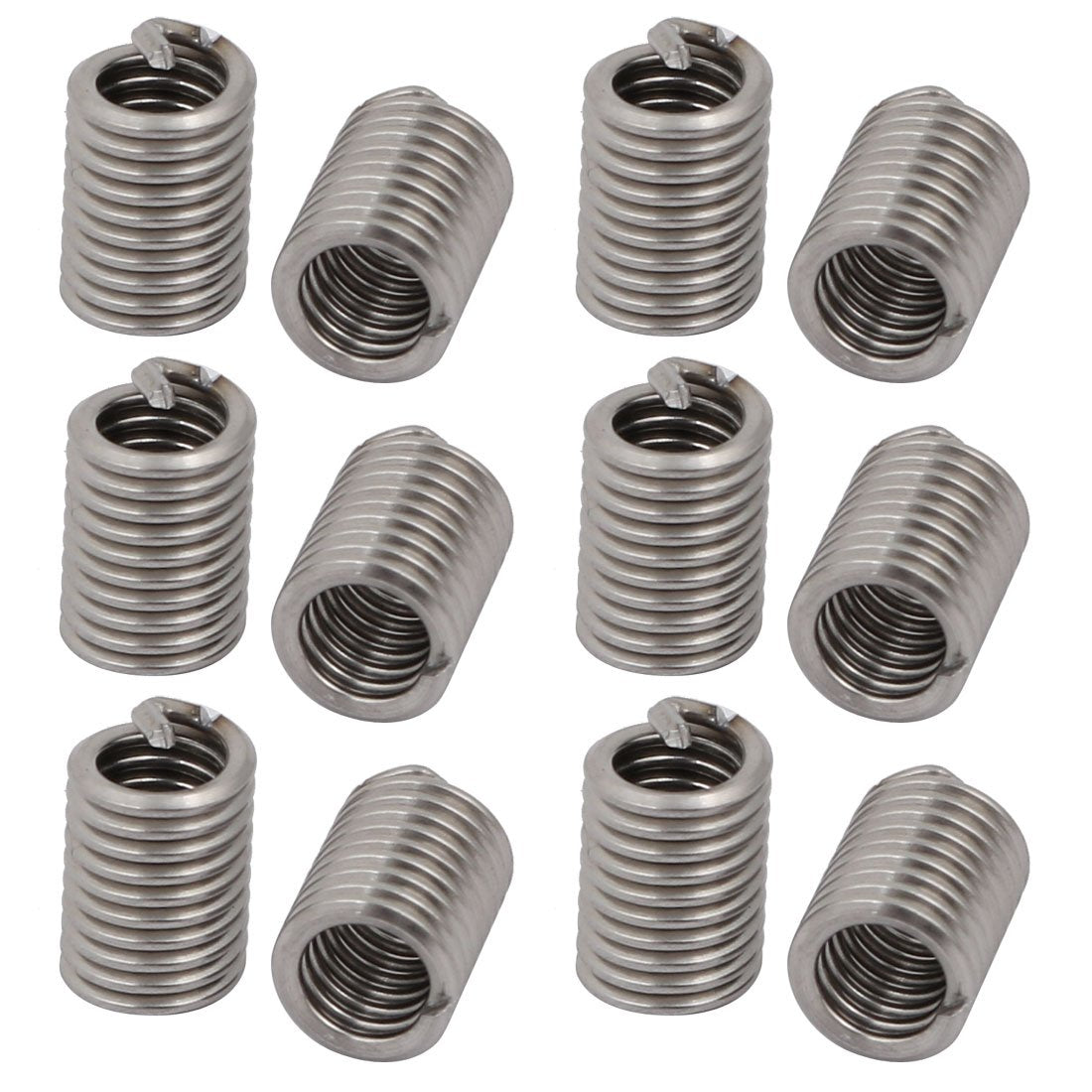

#10-24x0.475 304 Stainless Steel Helical Coil Wire Thread Insert 12pcs

Key Features

• Main Color Silver Tone; Material 304 Stainless Steel; Inner Thread #10-24; Outer Thread Diameter 6.1mm / 0.24"; Installed Length 2.5D / 0.475"
• 12 pieces produced from precision profiled austenitic stainless steel wire wound into a helical spiral, free running inserts have a spring like appearance.
• When installed using any one of a variety of manual or automatic tools they provide strong permanent internal threads which resist heat and corrosion.
• Once fitted their position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole.
• Widely used in steam turbines, electronic communications, computers, lamps, mechanical equipment, radiators, and 3D prints equipment.

Product Description

Features

12 pieces produced from precision profiled austenitic stainless steel wire wound into a helical spiral, free running inserts have a spring like appearance.When installed using any one of a variety of manual or automatic tools they provide strong permanent internal threads which resist heat and corrosion.Once fitted their position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole.Widely used in steam turbines, electronic communications, computers, lamps, mechanical equipment, radiators, and 3D prints equipment.Specification:Main Color: Silver ToneMaterial: 304 Stainless SteelWeight: 10gInner Thread: #10-24Outer Thread Diameter: 6.1mm / 0.24"Installed Length: 2.5D / 0.475"

Package Content

12pcs x Helical Coil Insert
