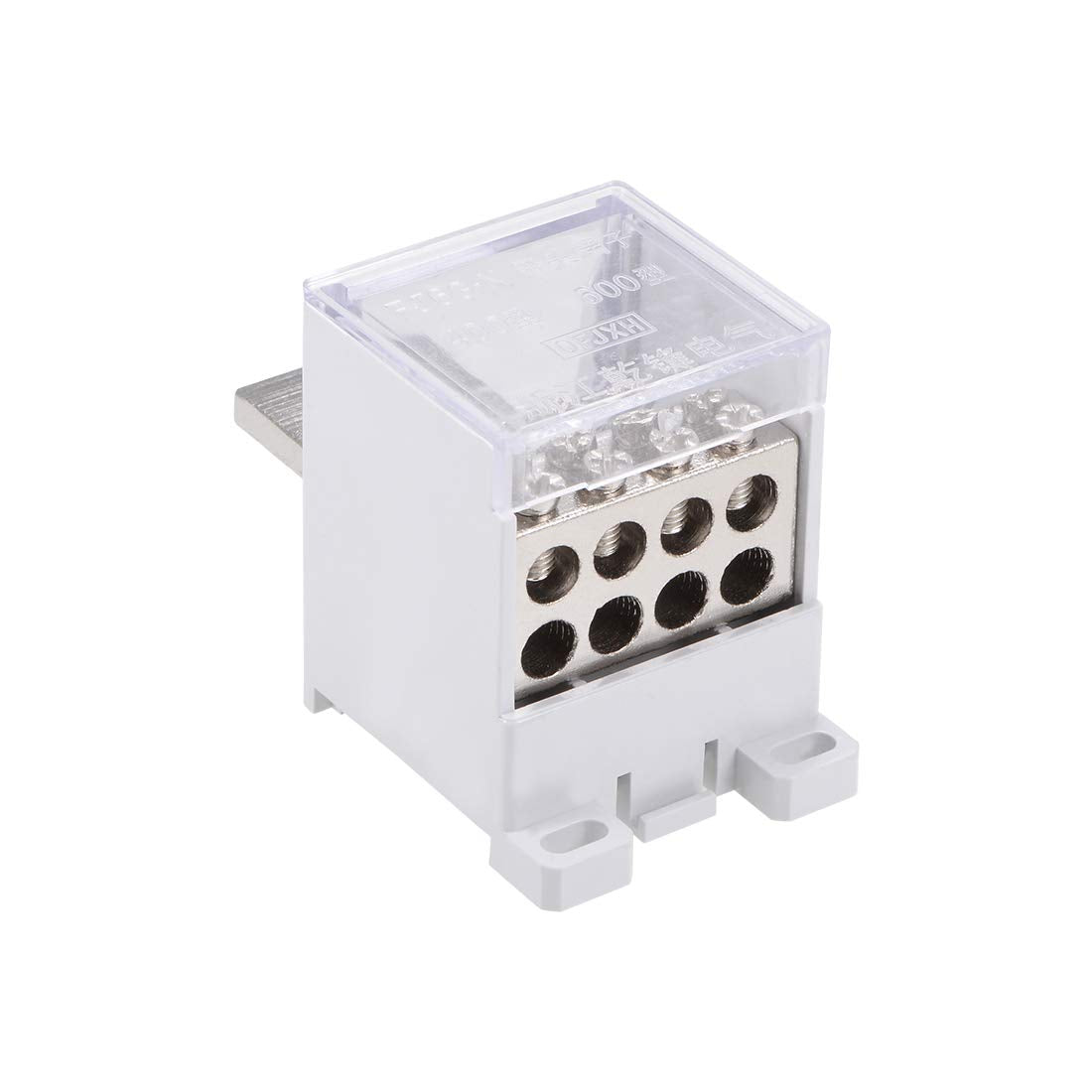

1 in 8 Out DIN Rail Terminal Blocks 690V 400A Max Input Distribution Block for Circuit Breaker

Key Features

• 【What You Get】1 Ways In, 8 Ways Out Din Rail Terminal Block
• 【Easy Install】Easy to install and held in place by screws or 35mm standard DIN rail
• 【Good Construct】Flame resistant shell combine with solid brass conductor for best conductivity
• 【Protect Cover】See through plastic cover for protecting accidental touching of the terminal
• 【Clean Installation】Screw-down wire clamps, high-accuracy output hole greatly simplified and neatened up your install

Product Description

Description

-A Terminal Block is where the electrical supply is distributed from within the building.-The main distribution board is usually in the house where the main electrical cable enters and smaller boards, together with contact breakers and possibly earth leakage units are at other points, such as swimming pool pumps, gate motors and outbuildings.-It is finished in insulated PC plastic and has a tough clear plastic protective cover.-This distribution block helps to remove the need for several separate wires running from the main power -source and gives you a more clean and professional installation.

Features

Type: 1 Ways In 8 Ways OutInsulation Voltage： 690VMax. Input Current: 400AMax. Output Current: 40AFit Input Cable Section: 25-70mm2Fit Output Cable Section: 1.5-16mm2Fit Din Rail Width: 35mmFix Hole Diameter: 8 x 4mm / 0.31" x 0.16"Dimension:Size: 51 x 44 x 56mm / 2.01" x 1.73" x 2.2" (L*W*H)

Package Content

1 x Din Rail Terminal Block
