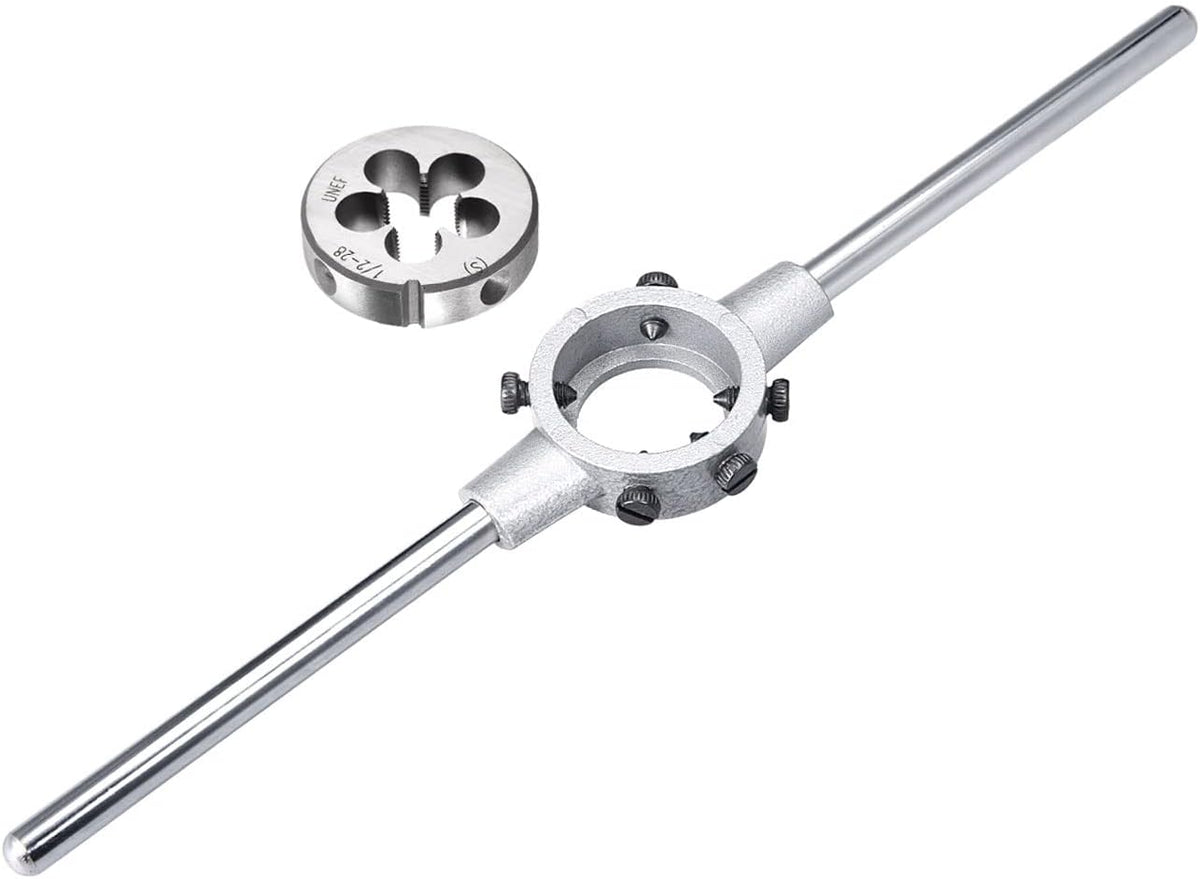

1/2-28 UNEF Round Die with M12-M14 Metric Round Die Stock Handle Wrench, High Speed Steel Machine Thread Round Die Threading Tool

Key Features

• Tap and Die Set 1/2-28 UNEF thread tap and round die. 38mm (1-1/2") die stock fits 24mm-38mm / M12-M14 capacity, with adjustable screws. Suitable for making or repairing male and female threads. Good for general purpose applications.
• Application Can re-thread existing threads in hard materials like metal, or make new threads in soft material like plastic. Used to process mild steel, aluminum, stainless steel, iron, cast iron, alloy steel, and hard plastics, etc.
• Features Round die holder is featured with adjustable screws to fix the dies. The die stock can securely hold round dies and is easy to operate.
• Easy to Use The positioning groove of the die (not included) should be aligned with the fastening screw in the middle of the die wrench, and the screws should be inserted into the slot of the die and tightened.
• Tips It needs to be reversed every 1/4~1/2 turn to facilitate the chip discharge from the chip hole. Suitable lubricating oil should be added to the cutting edge of the die when tapping threads.

Product Description

Specifications

(1)Round DieThread Size: 1/2-28 UNEFOutside Diameter: 38mm / 1.5"Thickness: 10mm / 0.39"Accuracy Class: 6gMaterial: Tool Steel

Features

1. Solid round dies are suitable for general purpose threading. Great for maintenance and repair work.2. Round Dies are perfect for re-threading existing threads in hard materials like metal or making new threads in softer material such as plastic.3. Great for maintenance and repair work in the shop or field. Die size is etched on the surface for easy identification.(2)Round Die StockMaterial: Tool Steel and Alloy SteelSurface Treatment: ElectrodustingFit Die Size: 38*14mm/1.5*0.55 inch(Dia*W)Fit Capacity Size: M12-M14 / 24mm-38mmOverall Length: 305mm/12.0inchHandle Length: 115mm/4.53 inchHandle Diameter: 10mm/0.39 inch

Features

5-screw design to fix the dies.Die Stock, also called die handle are for use in round dies only.This die stock is for using with a 38mm outside diameter split die. It features screws that allow you to compress the die to take off more material (if the thread is too tight) and alternatively a screw that allows the die to spread open, which allows you to cut or damaged bar

Package Includes

1X Round Die1X Round Die Stock
