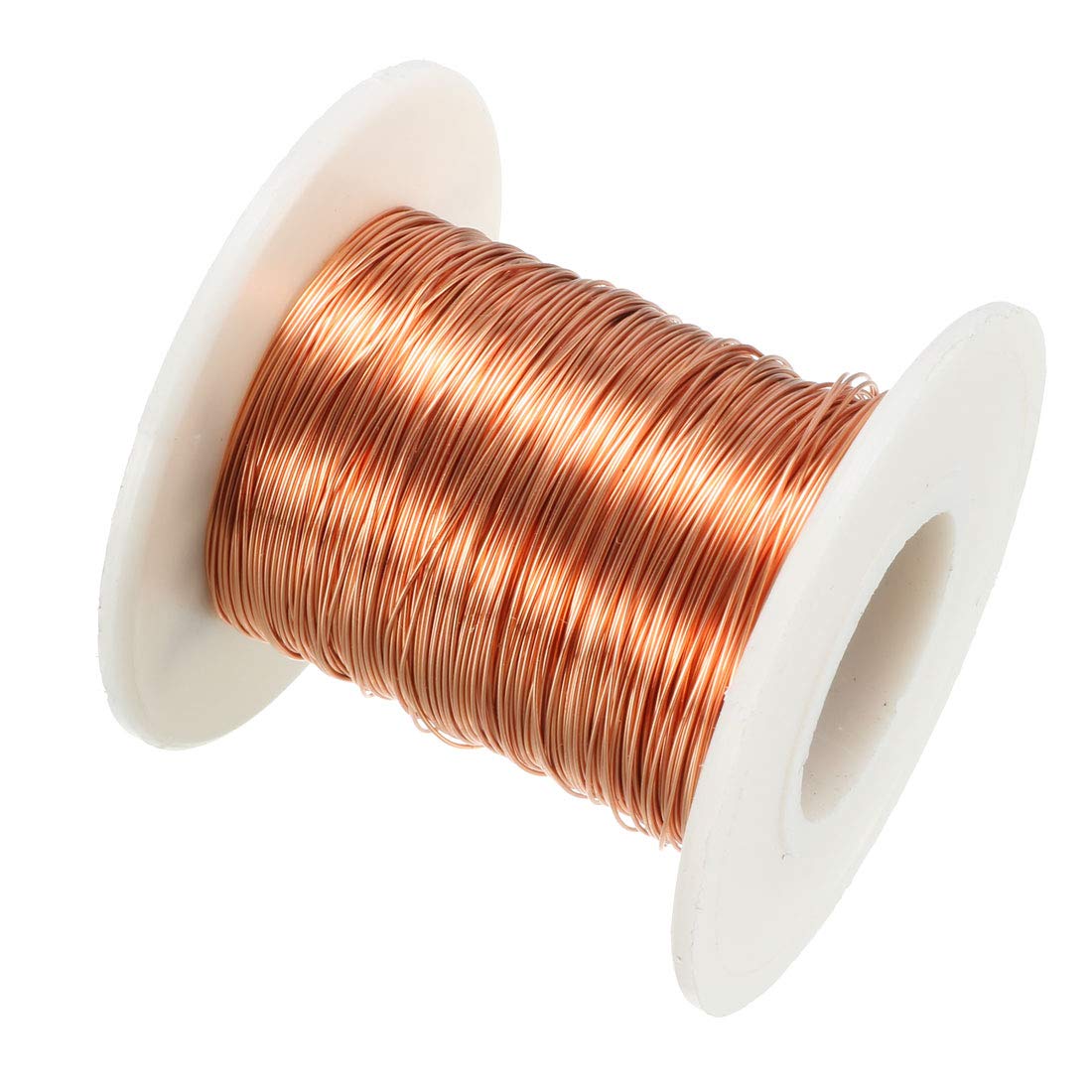

0.33mm Dia Magnet Wire Enameled Copper Wire Winding Coil 164ft Length Widely Used for Transformers Inductors

Key Features

• Inner Diameter 0.33mm/0.013"(+-0.03mm when measuring the outer diameter); Total Length 50M/164Ft.
• Material Polyurethane/ Polyamide Overcoat; Temperature Rating 155 degrees Celsius.
• Enameled wire has excellent adhesion, thermal stability, mechanical strength, solvent resistance and electrical properties. Suitable for a variety of motors, electromagnetic coils, transformers for long-term work.
• Highly Efficient enameled Copper Wire, Durable and not break while winding the coils.
• Package Content 1 x Enamelled Wire.

Product Description

Magnet wire is copper wire with a thin layer of insulation, and is used in a variety of applications including transformers, wound coils, motors, solenoids, and instruments.The insulation is made from modified Polyurethane with a polyamide overcoat, and protects the coiled wire from short-circuiting. Specification:Product Name: Enameled Copper WireMaterial: PolyurethaneMain Color: Copper ToneMax. Operating Temp: 155 degrees CelsiusAverage Wire Diameter: 0.33mm/0.013inchLength: 50m/164feet

Package Content

1 x Enameled Copper Wire
