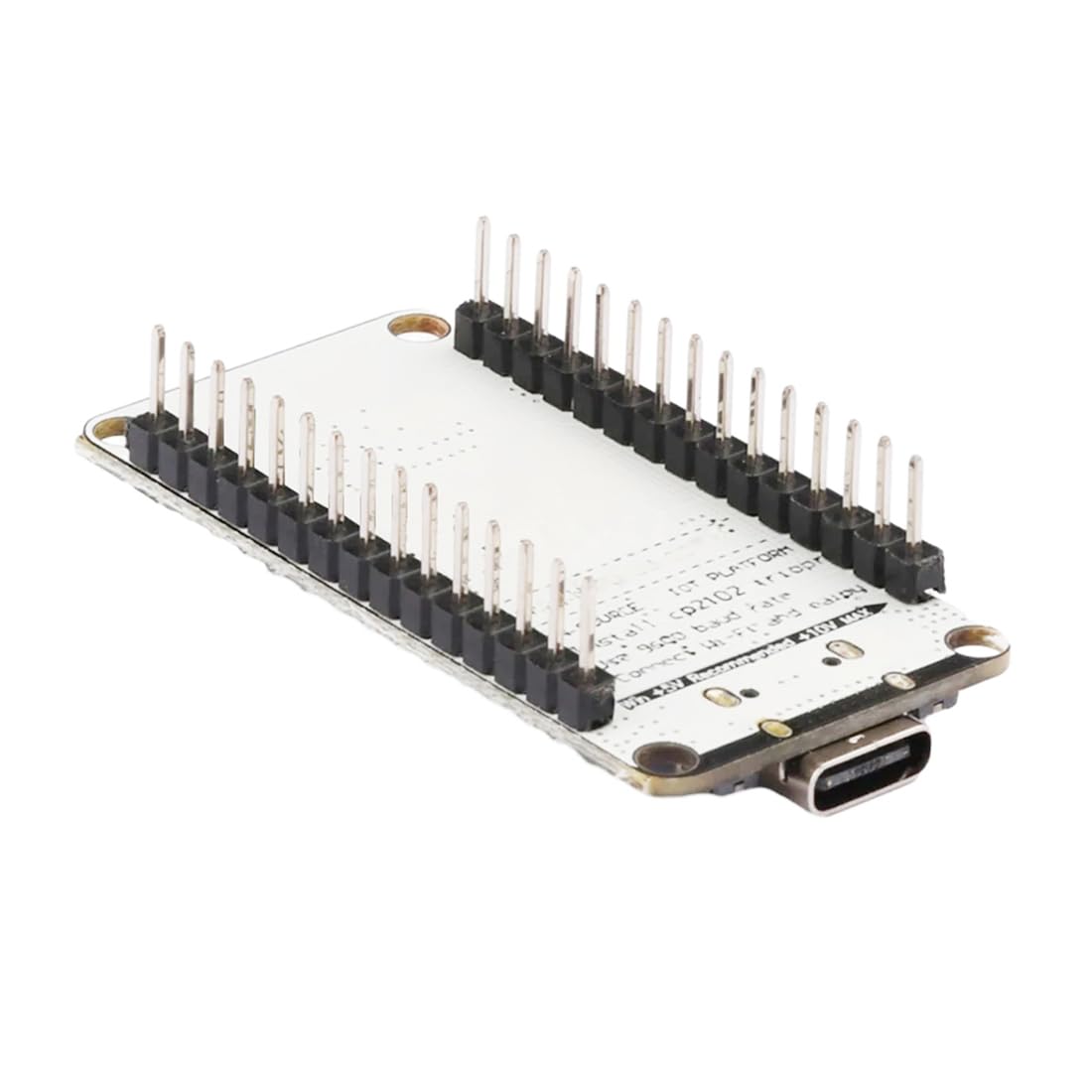

LinkMejor 3pcs ESP8266 NodeMCU Lua ESP-12E CP2102 USB C Type-C Interface IOT Internet of Things Wireless WiFi Development Board Module

Overview

• ESP8266 NodeMCU Lua ESP-12E CP2102 Development Board Module with USB C Type-C Interface, has a wider range of applications.
• Adopting the original brand new CP2102 chip with powerful functions, developing a complete set of tools for ESP8266.
• Built in Tensilica L106 ultra low power 32-bit micro MCU, with main frequency support of 80 MHz and 160 MHz
• Supports RTOS.
• Support many kinds of working modes like STAAP/STA+AP etc, support AT remote upgrade and cloud OTA , and upgrade for Smart Config function etc.

Description: 1. Use high-quality original new chip, guaranteed quality and stable performance; 2. ESP8266 has full IO ports for direct download without resetting; 3. Adopting a brand new CP2102 chip with powerful functions, developing a complete set of tools for ESP8266; 4. NodeMCU developed based on ESP8266, compatible with existing versions; 5. This product adopts the mainstream TYPE-C interface on the market, with a wider range of applications. Parameters: Chip model: CP2102 Interface: USB-C(Type-C) ESP8266 full IO port export, direct download without reset 802.11 b/g/n Built in 10 bit high-precision ADC Built in TCP/IP protocol stack Built in TR switch, balun, LNA, power amplifier, and matching network Built in PLL, voltage regulator, and power management components, with an output power of+20 dBm in 802.11b mode, aggregation of A-MPDU and A-MSDU, and a protection interval of 0.4 seconds WiFi @ 24 GHz, supports WPAWPA2 security mode Support for AT remote upgrade and cloud OTA upgrade Support STAAP/STA+AP working mode Support for Smart Config function HSPI, UART, 12C, 12S, IR Remote Control, PWM, GPIO deep sleep hold current is 10 uA, and turn off current is less than 5 uA Wake up, connect, and transmit data packets within 2ms Power consumption in standby mode is less than 1.0 mW (DTIM3) Application: Home Appliances Home Automation Smart sockets, smart lights Industrial wireless control Baby monitor IP camera Sensor network wearable electronic products Wireless location se
