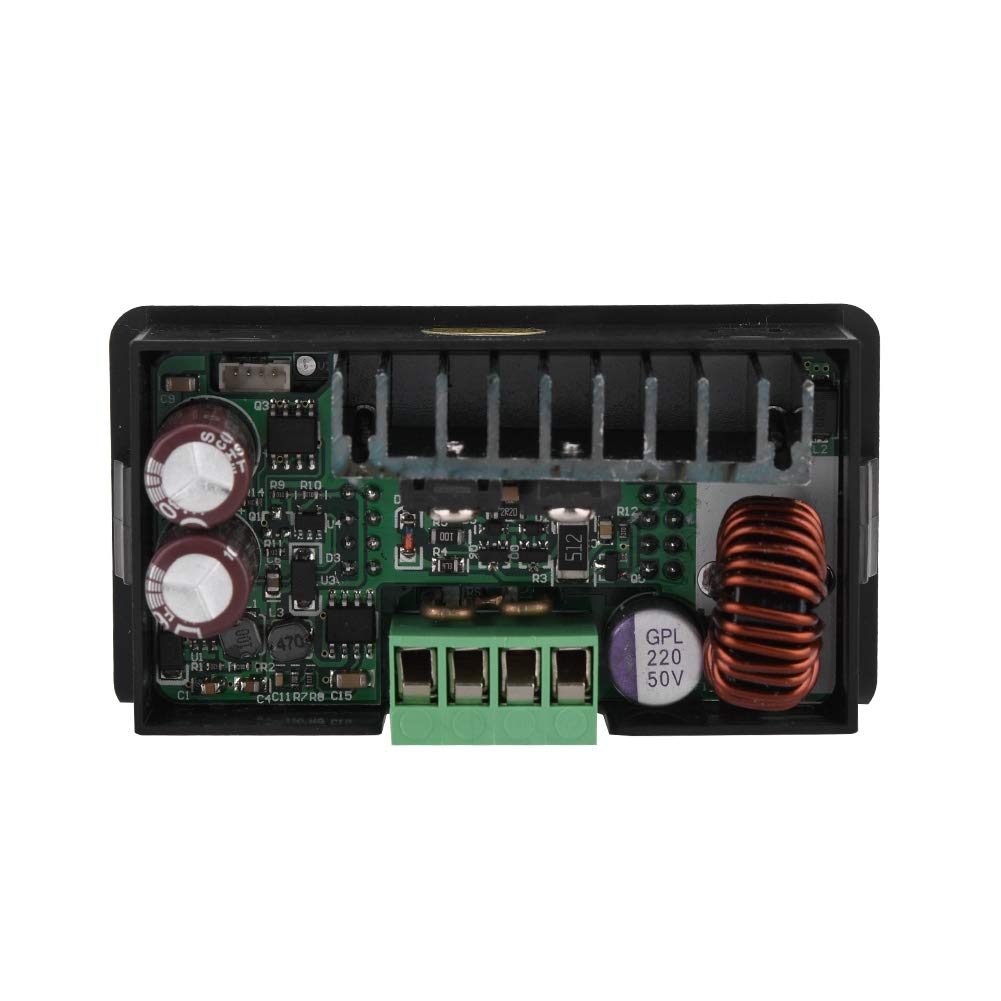

LinkMejor Step Down Power Power Regulator Step Down Module Step Down Transformer Module (DPS3005-USB-BT)

Overview

• DUAL FUNCTION COMBINATION STEP-DOWN POWER SUPPLY MODULE--The constant voltage and constant current programmable control power supply module put the collection of analog integration and digital control functions in one
• EQUIPPED WITH DATA STORAGE FUNCTION--This module has power-down stored function and can store 10 groups preset value
• OFFERS QUICKER VOLTAGE AND CURRENT EXTRACTION--Compared with the traditional analog power supply, it is more convenient to quickly extract the voltage or current required
• LCD DISPLAY ALLOWS CLEAR DATA READING--LCD display on the module has the function digital voltmeter and ammeter
• ADJUST VARIETY VALUES THROUGH SETTING DATA INTERFACE--On the setting data interface, you can adjust over-voltage value, over-current value, over-power value, data set and LCD brightness

Specification: Model(Optional) DPS3005 DPS5005 Input voltage 6.00-40.00V 6.00-55.00V Output voltage 0V-32.00V 0V-50.00V Output current 0-5.000A 0-5.000A Output power 0-160.0W 0-250.0W Voltage resolution 0.01V 0.01V Current resolution 0.001A 0.001A Size 80*44*45mm/3.1*1.7*1.8in Weight Approx.138g/4.9oz Connection description IN+: Input positive, IN-: Input negative: OUT+: Output positive, OUT-: Output negative Operating instructions When connect the power supply, the screen shows welcome window firstly and then comes into main interface. Set the data on the data setting interface Set the value. Adjust the brightness of screen. Page up or page down to B-LED, and then press shortly the coding potentiometer to enter into the status of adjusting the brightness of screen. Turn coding potentiometer to adjust the numerical value you need. If you want to exit adjusting the numerical value, press shortly SET key. There are six brightness levels of LCD screen, 0-5 level. Rank 0 is the darkest; rank 5 is the brightest. You can choose what you like. Data setting and store the specified data group. Page up or page down to M-PRE, and then press shortly the coding potentiometer to enter into the status of choosing the data groups.
