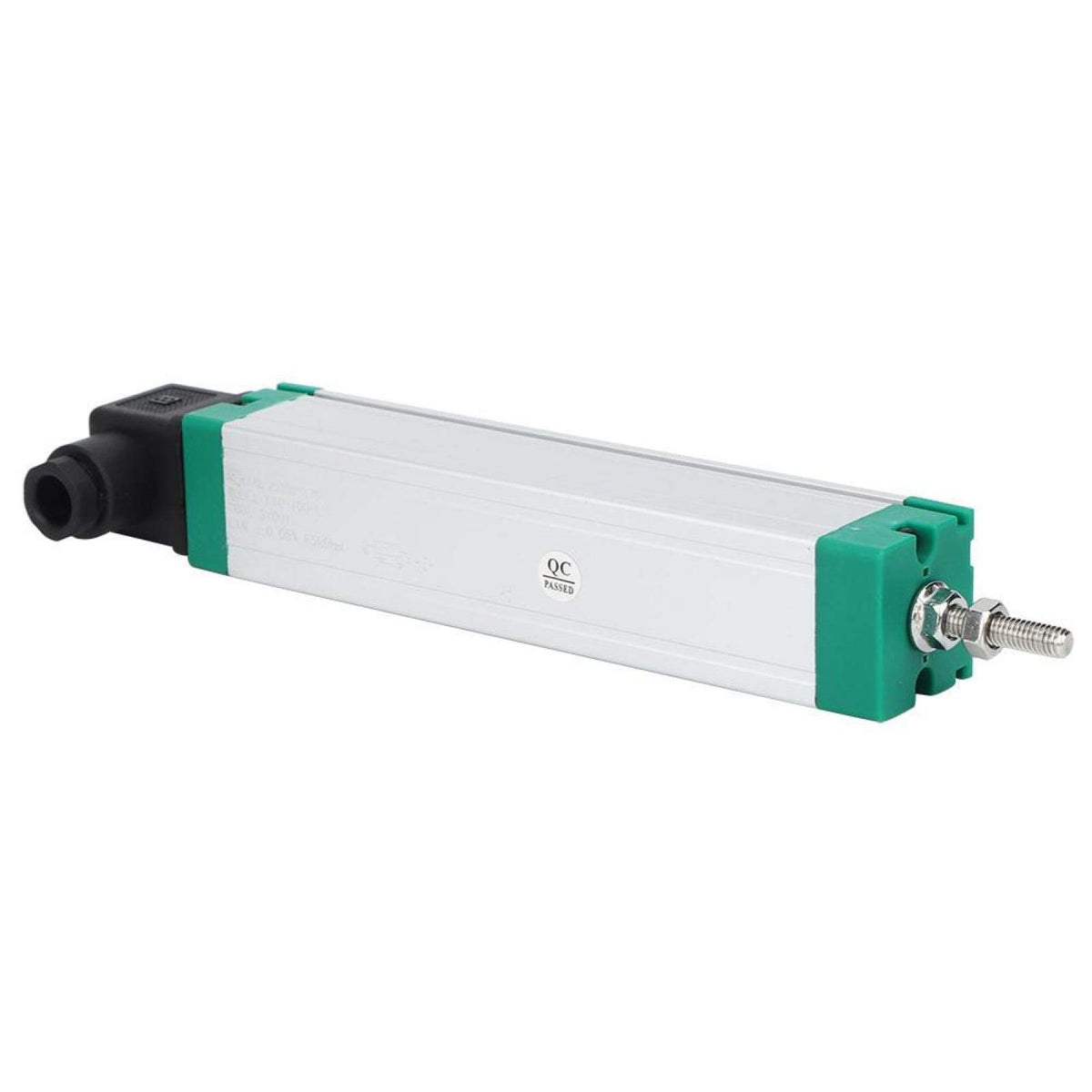

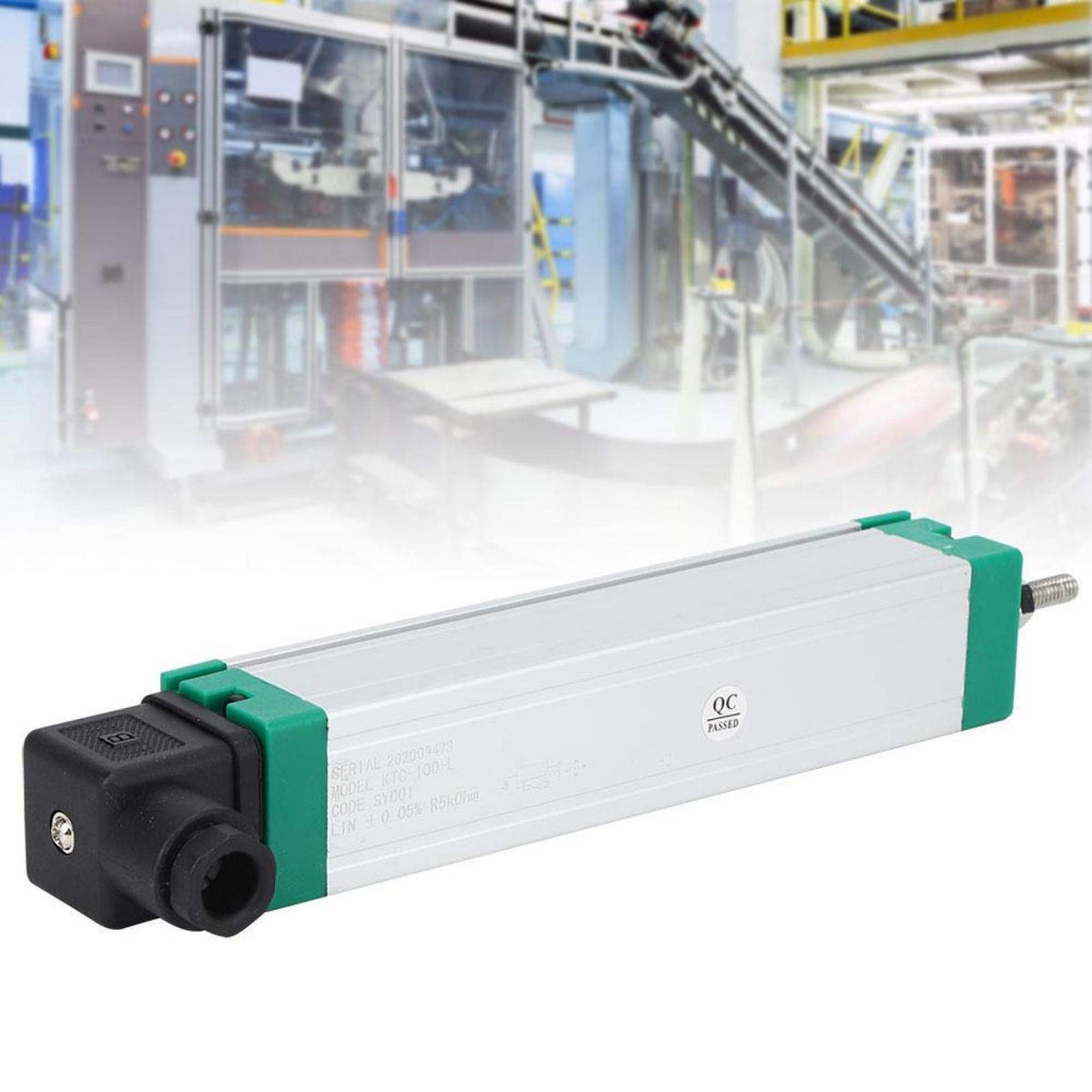

LinkMejor Injection Electronic Ruler Pull Rod Displacement Sensor, IP67 Level Stainless Steel Linear Position Sensor(-100)

Overview

• 【Good Performance】The displacement sensor supports high-definition sound quality, compatible with all devices, which has strict performance requirements through the processes of many experts.
• 【Convenient】The electronic ruler adopts plug type, convenient and practical, no noise output, smooth engineering rod, resolution: Infinite uninterrupted analysis, repeatability: 0.01mm.
• 【Feature】The injection electronic ruler adopts plug for Hessman to resist oxidation, , and durability, with exquisite workmanship, which can reduce loss.
• 【Potentiometer Principle】The sensor has high compatibility, adopts the potentiometer principle, and will change with displacement when the given input voltage is , with and .
• 【Safety】The displacement sensor is made of stainless steel, not easy to , long service life, with the highest IP67 level, good effect, you are to use.

Specification: Item Type: Displacement Sensor Optional : -100, -300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG : Horizontal direction <10N Vertical direction≤10N Vibration Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Shock Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life: > 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Level: Highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
