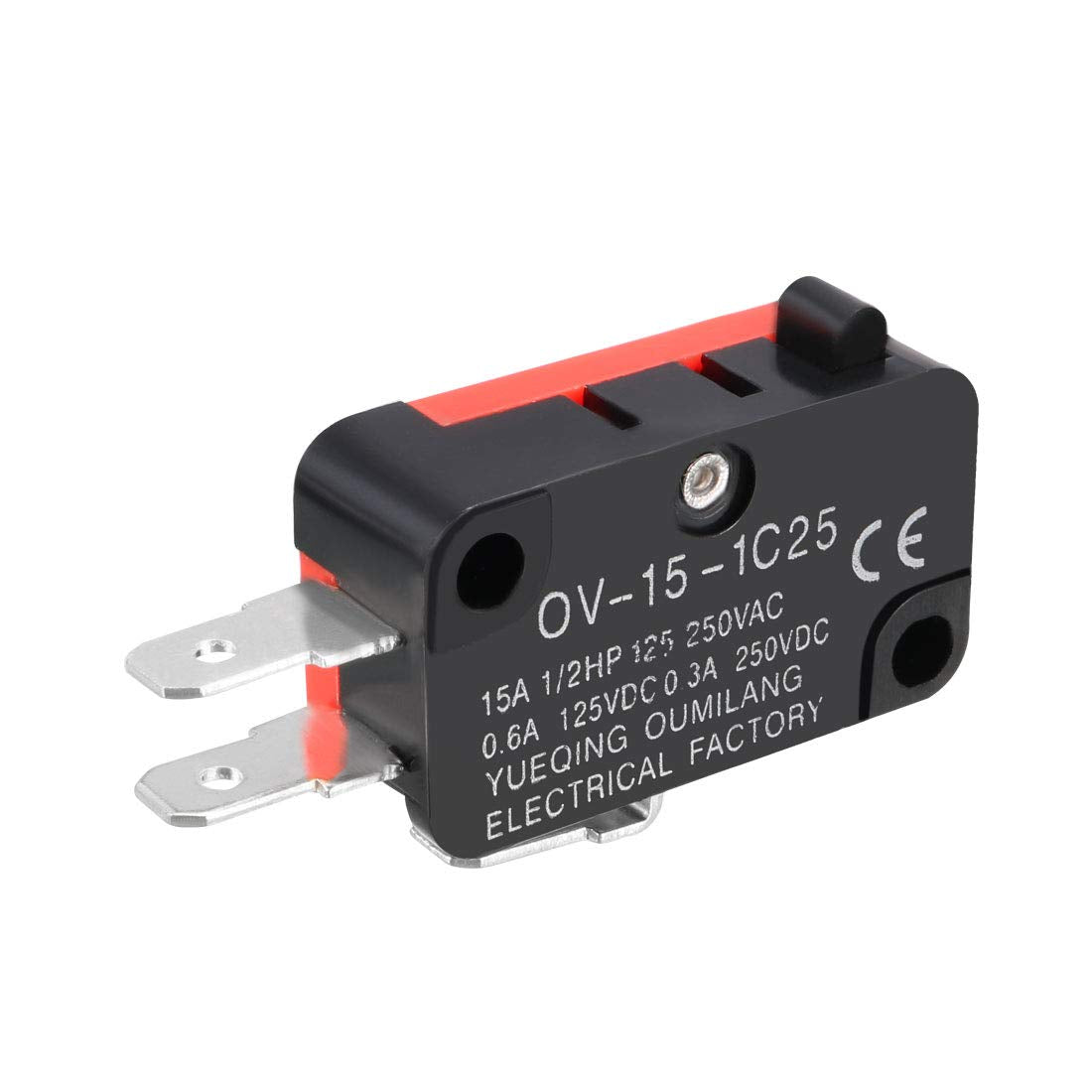

OV-15-1C25 15A 125/250V AC 3 Terminals Snap Button Type Mikro Begrænsningsswitch

Key Features

• Bewertungsbelastung 15A 1/2HP 125/250VAC. Og kontakttypen er SPDT NO+NC
• 3 pinde, anvendelig til AC DC kontrolkredsløb. Pålidelig i mange år
• High precision design, use easily.Designed to control the movement of a mechanical part.
• IP 62 Beskyttelsesgrad. Dette betyder, at denne bryder er tilgængelig til fuld støvbeskyttelse og vandspyd < 15 grader fra lodret.
• Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...

Produktbeskrivelse

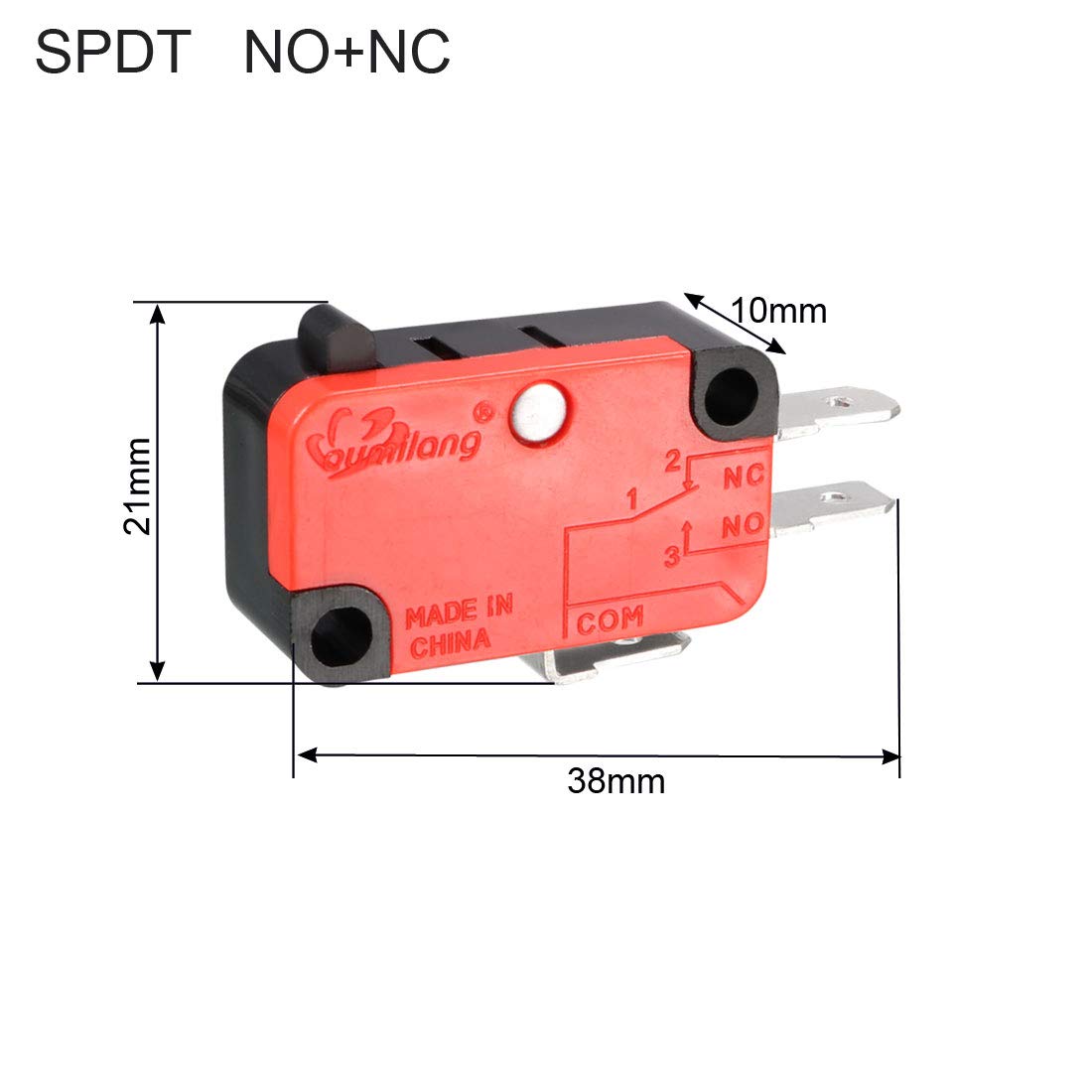

FeaturesAdopt thermosetting plastic or thermoplastic;Offers long service and operations life.Small contact gap, snap sction, high sensitivity and small operatng travelWidly used in appliance, elctronic equipment, automatic machine, communication equipment, electric, apparatus and instrument, electro motion tool etc... SpecificationRating Load: 15A 1/2HP 125/250VAC; 0.6A/125VDC, 0.3A/250VDCOperation speed: 0.1mm-1m/sContact resistance: 15m Ohm max. (initial)Insulation resistance: 100m Ohm min. (at DC500V)Dielectric strength: 1,000 VAC 50/60 Hz for 1minuteLife: 100,000 operations min. full load (Electrical); 10,000,000 operations min.(Mechanical)Operating temperature: -25~+80°CContact Form: SPDT NO+NCPin number: 3Overall size: 38x21x10mm/1.5x0.83x0.39inch(L*W*H)Total weight: 7g Package Content1 x Microswitch
